Product introduction:

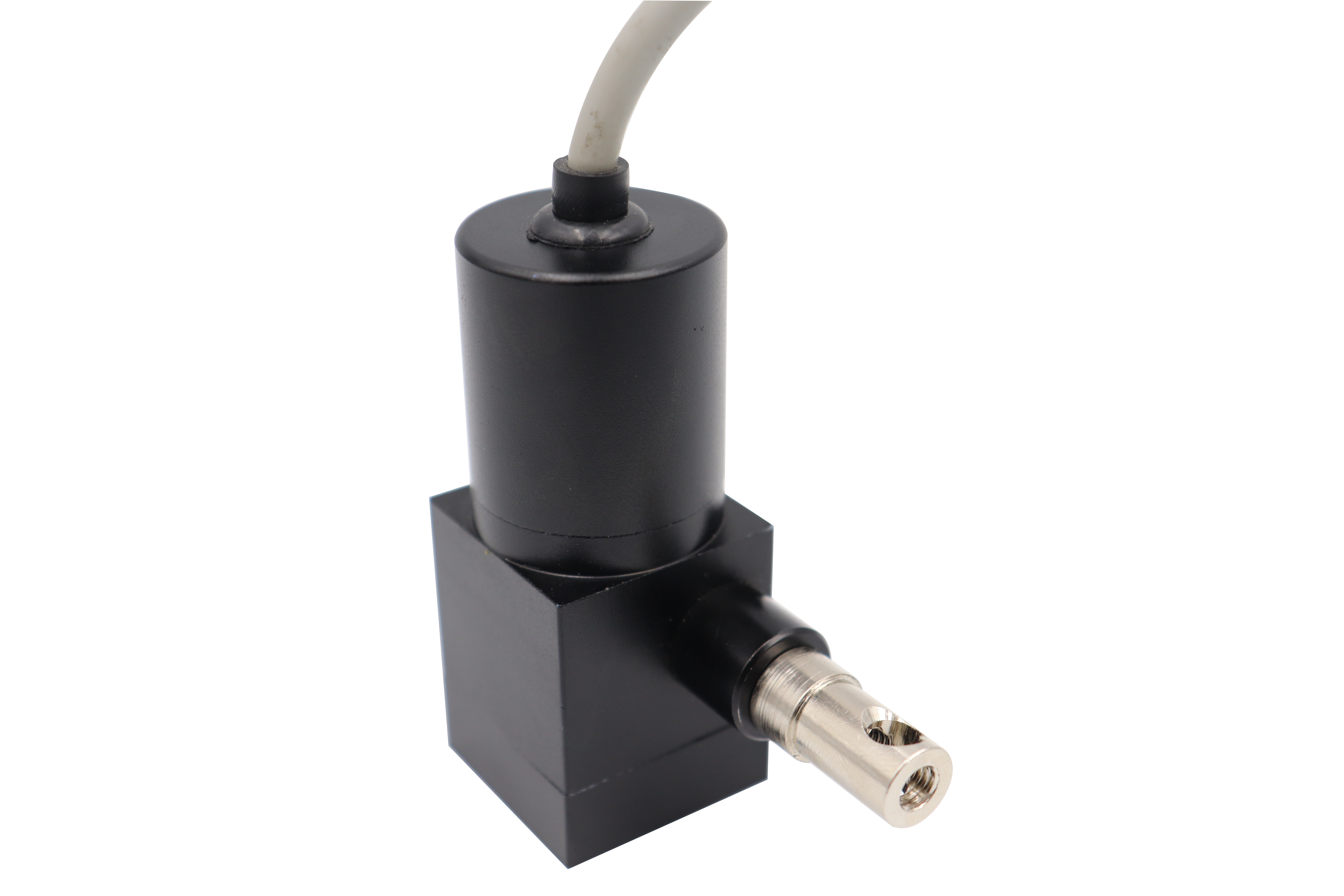

MPS XXS?type?miniature cable?displacement sensor, range of 100mm~500mm, sensing resistance output type, small size?and?high precision, with good waterproof and dustproof performance, can be used in the open air live shallow water long-term stable operation.?It can also be equipped with external transmission module to output standard analog signal or digital signal, which is convenient for long-distance transmission or system acquisition.
Features：
Long service life, up to 5 million times of operation
High precision, linear accuracy ±0.15%，repeatability accuracy ±0.02%.
Various models, a variety of signal output is optional, convenient system acquisition or long-distance transmission.
High protection level, can be used in the open air or in shallow water.
Explain: ?Shell ????Anodized aluminum
? ? ? ? ? ? ? ? Assembly: ??screws fixed
? ? ? ? ? ? ? ? Measurement components: ???potentiometer
Performance parameter：
Range: 100-500mm
Linear accuracy: ±0.15%FS
Repeatability accuracy: ±0.02%FS
Resistance value（±10%）：5KΩ，10KΩ
Resolution: infinite?no broken parsing，RS485
Maximum allowable working voltage: 24 V DC，Output signal: resistance output（0-5KΩ）; Voltage signal (0-5V, 0-10V); Current signal (4-20mA); RS485 digital signal
Sensor type: wire wound hybrid potentiometer (encoder)
Maximum working speed: 1m / S
Temperature range: - 40 ℃ to + 80 ℃
Service life: 5 million times
XXS type miniature?cable?displacement sensor default?resistance output, 0-5V, 0-10V, 4-20mA or RS485 signal output needs external transmission module.
Application area：
It is mainly applicable to:?Storage position location, the opening of the gate is dam protection, control, pressure machinery, paper machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level control instrument, construction machinery, industrial robots, injection machines, woodworking machinery, elevators, air compressor, hydraulic press, height of machine, x-y axis length displacement, level measurement and other automation measurement occasions.
